What is Aluminum Alloys ?

Aluminium alloys are alloys in which aluminium (Al) is the predominant metal. The typical alloying elements are copper, magnesium, manganese, silicon and zinc. There are two principal classifications, namely casting alloys and wrought alloys, both of which are further subdivided into the categories heat-treatable and non-heat-treatable. About 85% of aluminium is used for wrought products, for example rolled plate, foils and extrusions. Cast aluminium alloys yield cost effective products due to the low melting point, although they generally have lower tensile strengths than wrought alloys. The most important cast aluminium alloy system is Al-Si, where the high levels of silicon (4.0% to 13%) contribute to give good casting characteristics. Aluminium alloys are widely used in engineering structures and components where light weight or corrosion resistance is required.

Aluminum Alloy Wheel

An alloy is a material made up of two or more metals. Alloys have certain specific, desirable characteristics, including strength, formability, and corrosion resistance. Some of the common elements alloyed with aluminum include copper, manganese, silicon, magnesium, and zinc. Typical applications and uses of aluminum alloys include building products (siding and structural), rigid and flexible packaging (foil, food, and beverage cans), and transportation (automobiles, aircraft, and rail cars).

Aluminum Alloys JIS A2017
Aluminum is a silverish white metal that has a strong resistance to corrosion and like gold, is rather malleable. It is a relatively light metal compared to metals such as steel, nickel, brass, and copper with a specific gravity of 2.7. Aluminum is easily machinable and can have a wide variety of surface finishes. It also has good electrical and thermal conductivities and is highly reflective to heat and light.

At extremely high temperatures (200-250°C) aluminum alloys tend to lose some of their strength. However, at subzero temperatures, their strength increases while retaining their ductility, making aluminum an extremely useful low-temperature alloy.

Aluminum Ingots

Aluminum alloys have a strong resistance to corrosion which is a result of an oxide skin that forms as a result of reactions with the atmosphere. This corrosive skin protects aluminum from most chemicals, weathering conditions, and even many acids, however alkaline substances are known to penetrate the protective skin and corrode the metal.

Aluminum Alloys Profile

Aluminum also has a rather high electrical conductivity, making it useful as a conductor. Copper is the more widely used conductor, having a conductivity of approximately 161% that of aluminum. Aluminum connectors have a tendency to become loosened after repeated usage leading to arcing and fire, which requires extra precaution and special design when using aluminum wiring in buildings.

Aluminum Alloys Ingots

Aluminum is a very versatile metal and can be cast in any form known. It can be rolled, stamped, drawn, spun, roll-formed, hammered and forged. The metal can be extruded into a variety of shapes, and can be turned, milled, and bored in the machining process. Aluminum can riveted, welded, brazed, or resin bonded. For most applications, aluminum needs no protective coating as it can be finished to look good, however it is often anodized to improve color and strength.

Aluminum Alloys can be divided into nine groups.

  • 1xxx  Unalloyed (pure) >99% Al
  • 2xxx  Copper is the principal alloying element, though other elements (Magnesium) may be specified
  • 3xxx  Manganese is the principal alloying element
  • 4xxxSilicon is the principal alloying element
  • 5xxxMagnesium is the principal alloying element
  • 6xxxMagnesium and Silicon are principal alloying elements
  • 7xxxZinc is the principal alloying element, but other elements such as Copper, Magnesium, Chromium, and Zirconium may be specified
  • 8xxxOther elements  (including Tin and some Lithium compositions)
  • 9xxx  Reserved for future use

1xxx Series. These grades of aluminum are characterized by excellent corrosion resistance, high thermal and electrical conductivities, low mechanical properties, and excellent workability. Moderate increases in strength may be obtained by strain hardening. Iron and silicon are the major impurities.

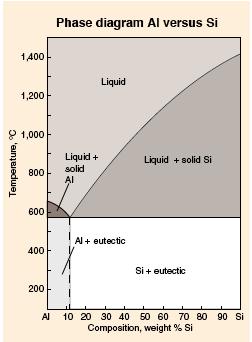

Phase Diagram Al – Si

2xxx Series. These alloys require solution heat treatment to obtain optimum properties; in the solution heat-treated condition, mechanical properties are similar to, and sometimes exceed, those of low-carbon steel. In some instances, precipitation heat treatment (aging) is employed to further increase mechanical properties. This treatment increases yield strength, with attendant loss in elongation; its effect on tensile strength is not as great.

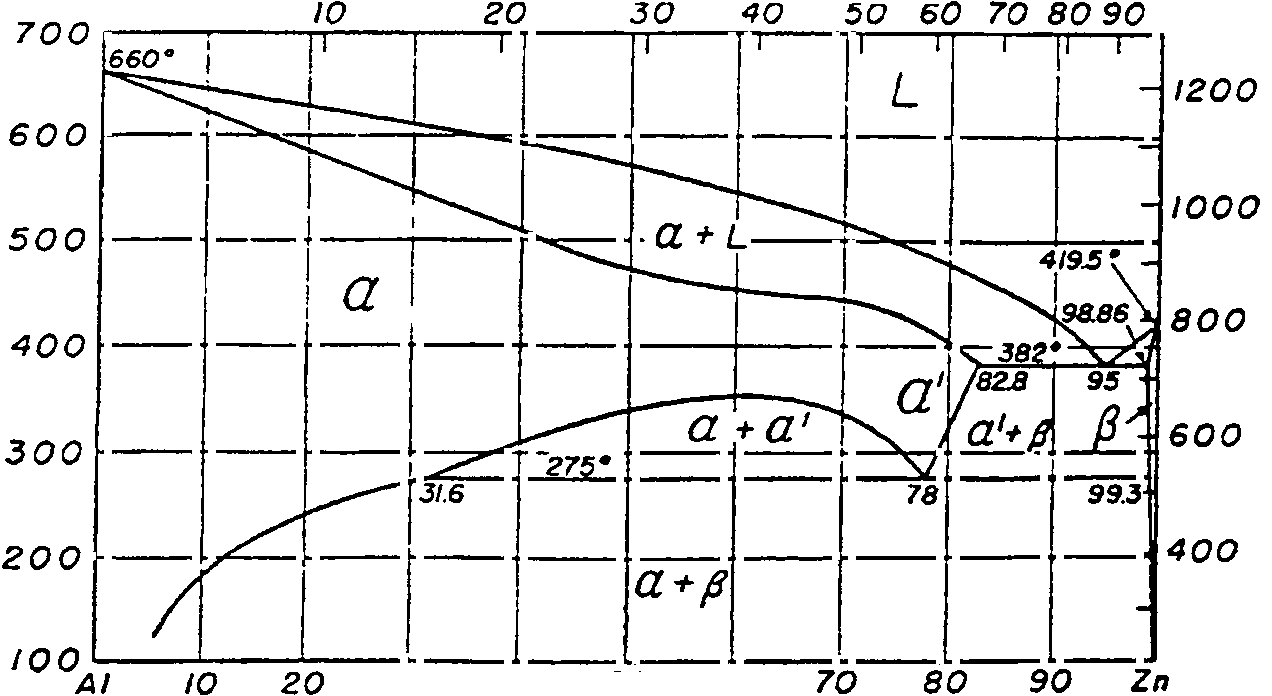

Phase Diagram Al – Zn

The alloys in the 2xxx series do not have as good corrosion resistance as most other aluminum alloys, and under certain conditions they may be subject to intergranular corrosion.  Alloys in the 2xxx series are good for parts requiring good strength at temperatures up to 150 °C (300 °F). Except for alloy 2219, these alloys have limited weldability, but some alloys in this series have superior machinability.

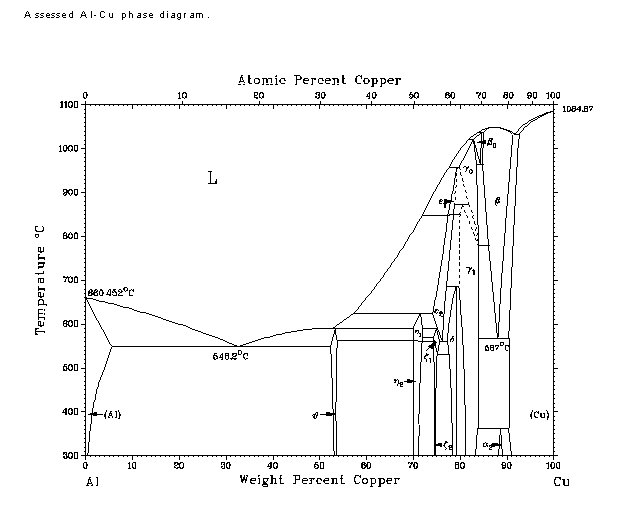

Phase Diagram Al – Cu

3xxx Series. These alloys generally are non-heat treatable but have about 20% more strength than 1xxx series alloys. Because only a limited percentage of manganese (up to about 1.5%) can be effectively added to aluminum, manganese is used as major element in only a few alloys.

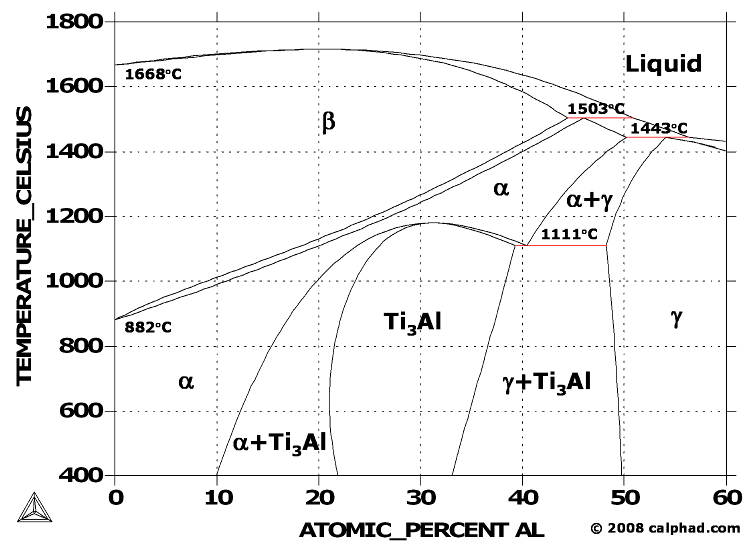

Phase Diagram Al – Ti

4xxx Series. The major alloying element in 4xxx series alloys is silicon, which can be added in sufficient quantities (up to 12%) to cause substantial lowering of the melting range.  For this reason, aluminum-silicon alloys are used in welding wire and as brazing alloys for joining aluminum, where a lower melting range than that of the base metal is required.  The alloys containing appreciable amounts of silicon become dark gray to charcoal when anodic oxide finishes are applied and hence are in demand for architectural applications.

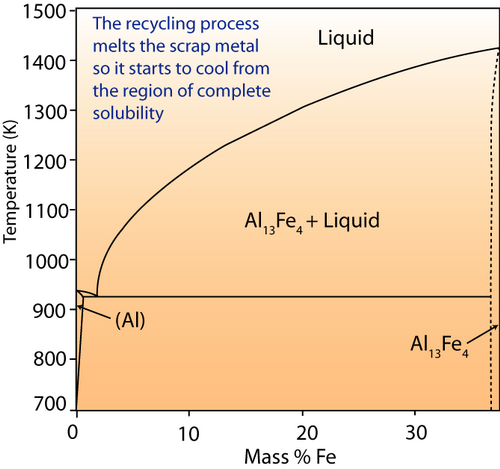

Phase Diagram Al – Fe

5xxx Series. The major alloying element is Magnesium an when it is used as a major alloying element or with manganese, the result is a moderate-to-high-strength work-hardenable alloy. Magnesium is considerably more effective than manganese as a hardener, about 0.8% Mg being equal to 1.25% Mn, and it can be added in considerably higher quantities. Alloys in this series possess good welding characteristics and relatively good resistance to corrosion in marine atmospheres. However, limitations should be placed on the amount of cold work and the operating temperatures (150 degrees F) permissible for the higher-magnesium alloys to avoid susceptibility to stress-corrosion cracking.

Futuristic Aluminum Art Furniture Table by Bruce Gray

6xxx Series. Alloys in the 6xxx series contain silicon and magnesium approximately in the proportions required for formation of magnesium silicide (Mg2Si), thus making them heat treatable. Although not as strong as most 2xxx and 7xxx alloys, 6xxx series alloys have good formability, weldability, machinability, and relatively good corrosion resistance, with medium strength. Alloys in this heat-treatable group may be formed in the T4 temper (solution heat treated but not precipitation heat treated) and strengthened after forming to full T6 properties by precipitation heat treatment.

7xxx Series. Zinc, in amounts of 1 to 8% is the major alloying element in 7xxx series alloys, and when coupled with a smaller percentage of magnesium results in heat-treatable alloys of moderate to very high strength. Usually other elements, such as copper and chromium, are also added in small quantities. 7xxx series alloys are used in airframe structures, mobile equipment, and other highly stressed parts.  Higher strength 7xxx alloys exhibit reduced resistance to stress corrosion cracking and are often utilized in a slightly overaged temper to provide better combinations of strength, corrosion resistance, and fracture toughness.

References :
  • Aluminum and Aluminum Alloys Author: Joseph R. Davis
  • Handbook of Aluminum Creators: George E. Totten, D. Scott MacKenzie
  • Handbook of Aluminum Bonding Technology and Data Author: J. D. Minford
  • HANDBOOK OF DESIGN STRESSES FOR ALUMINUM Author: Alcoa
  • http://en.wikipedia.org
  • http://www.efunda.com
  • http://www.materialsengineer.com
  • http://www.aluminum.org
  • http://www.doitpoms.ac.uk
  • http://www.brucegray.com
  • http://gadgetflash.com
  • http://gadgetflashstore.com/
  • http://www.youtube.com/
